Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed

Name: Customizable Size High-Strength PVC Divider Curtain for Sports Hall with 7.5m/min Lifting Speed
Brand: Shenzhen Flyon Sports Co., Ltd.
SKU: 7.5 metros / minuto
Price: 304.85 USD
Availability: InStock

Nombre De La Marca:	Flyon, Flyon
Número De Modelo:	7.5 metros / minuto
Cuota De Producción:	500
Precio:	CN¥294.85-315.47

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Cantón, China, China

Velocidad de elevación:

7.5 metros / minuto

material:

Malla/Vinilo, PVC, fibra de poliéster de alta resistencia o tejido de fibra de vidrio+PVC

voltaje del motor:

220 V CA

Tipo de motor:

motor tubular

Diámetro del motor:

3 pies

Dimensión de apilamiento:

50 cm

Duración máxima:

20 metros

Área máxima:

125 m²

Fase motora:

De una sola fase

Tipo de operación:

Interruptor de llave, control remoto inalámbrico

Protección contra sobrecarga:

Sobrecarga térmica de reinicio automático

Tubo inferior:

Acolchado

Tipo de costura:

Horizontal

Opciones de color:

Rojo, azul, verde, amarillo, blanco, gris, personalizable

Sincronización de motores:

Motores duales para cortinas más grandes

Resaltar:

Customizable Size Divider Curtain

High-Strength PVC Sports Hall Divider

7.5m/min Lifting Speed Gymnasium Divider

Descripción de producto

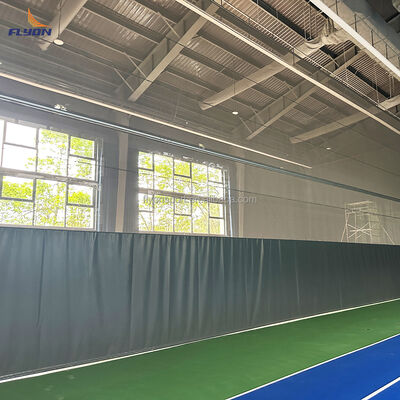

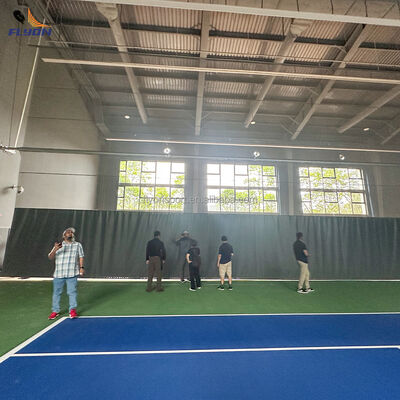

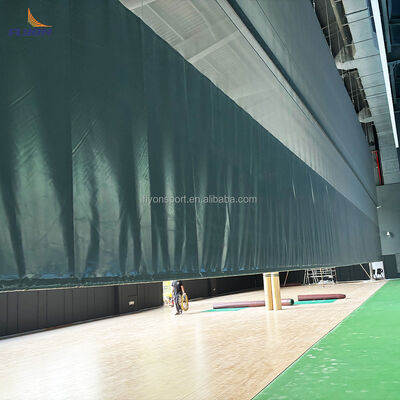

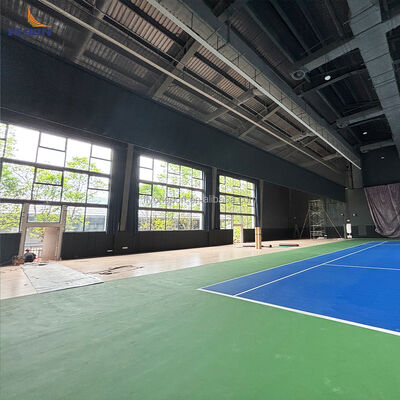

Center Roll Divider Curtain for Sports Facilities

The Center Roll Divider features an innovative overhead design that eliminates traditional hoist cables, straps, and support rollers. With minimal stack height, this system rolls both top and bottom sections compactly toward the ceiling, reducing wear points and operating twice as fast as standard dividers.

This maintenance-free assembly operates quietly with automatic overheating protection and permanent lubrication. When mounted directly to roof structures, it maintains clearance within 50cm of the ceiling. The fast folding action achieves 7.5 meters per minute and is available in solid, mesh, or combination finishes.

Product Specifications

Item	Value
Place of Origin	China
Product Name	Sports Hall Dividing Curtains
Color	Customizable
Brand	Flyon
Material	High-strength polyester fiber or glass fiber fabric + PVC
Suitable Places	Gymnasium, school, basketball court

Motor System

Utilizes 100 Nm, 220 V AC tubular motors with 3-foot diameter. The tubular-type motor (220V, single-phase) includes gear reducer and brake mechanism concealed within the horizontal batten tube. Equipped with push-button limit switches and automatic reset thermal overload protection.

Motor Configuration

Curtains up to 125 m² or 20 m long use single motor. Larger curtains utilize two synchronized motors. Includes standard key switch operation with optional wireless remote control.

Performance Specifications
