Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty

Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty

Nombre De La Marca: FLYON
Número De Modelo: Cortinas divisorias para pabellones deportivos
Cuota De Producción: 100
Precio: AED 287.92-317.83
Información detallada
Lugar de origen:
Cantón, China
material:
Fibra de poliéster de alta resistencia o tejido de fibra de vidrio+PVC
Espesor:
2,3 mm
voltaje del motor:
220 V CA
Tipo de motor:
motor tipo tubular
potencia del motor:
Las demás
Velocidad de operación:
7,5 m por minuto
Dimensión de apilamiento:
50 cm
Diámetro del motor:
3 pies
Área máxima de cortina:
125 m²
Longitud máxima de la cortina:
20 metros
Fase motora:
De una sola fase
Protección contra sobrecarga:
reinicio automático, protección contra sobrecarga térmica
Opciones de control:
Interruptor de llave, control remoto inalámbrico
Tipo de costura:
Costuras horizontales
Tubo inferior:
Tubo inferior acolchado.
Resaltar:

Automatic Overheating Protection Divider Curtain

,

7.5m per Minute Dividing Curtain

,

2 Years Warranty Sports Hall Divider

Descripción de producto
Automatic Center Roll Divider Curtains for Sports Facilities

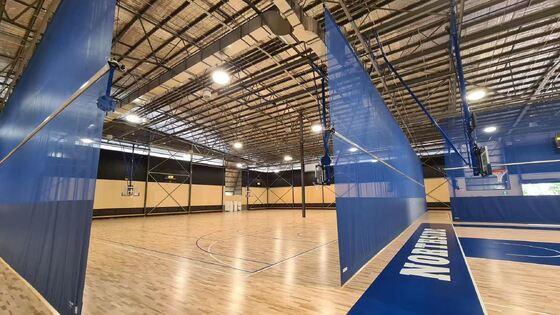

Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 0
The Center Roll Divider features an innovative overhead design that eliminates traditional hoist cables, straps, and overhead support rollers. With minimal stack height, this system provides efficient space utilization in gymnasium environments.
As the aluminum drive tube rotates, it smoothly moves the curtain upward, rolling both top and bottom sections compactly toward the ceiling. This design eliminates common wear points found in traditional dividers and enables the Center-Roll system to operate twice as fast as standard curtain systems.
The assembly operates with minimal noise and includes automatic overheating protection. Permanently lubricated components ensure maintenance-free operation. When mounted directly to roof structures, this divider maintains a stack dimension within 50cm of the ceiling, maximizing clearance space.
The system achieves fast folding action at 7.5 meters per minute and is available in solid, mesh, or combination configurations to suit various facility requirements.
Product Specifications
Item Value
Place of Origin China
Product Name Sports Hall Dividing Curtains
Color Customizable
Brand Flyon
Material High-strength polyester fiber or glass fiber fabric with PVC coating
Suitable Places Gymnasium, schools, basketball courts
Motor System

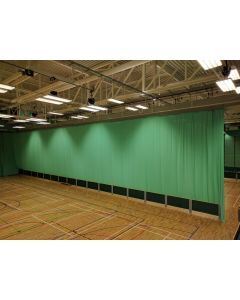

Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 1
Utilizes 100 Nm, 220 V AC tubular motors with 3-foot diameter. The tubular-type motor (220V, single-phase) includes gear reducer and brake mechanism concealed within the horizontal batten tube. Each motor is equipped with up/down push-button limit switches and automatic reset thermal overload protection.
Motor Configuration
Curtains up to 125 m² or 20 meters long utilize single motor operation. Larger curtain systems employ two synchronized motors for consistent performance. Standard operation includes key switch control with optional wireless remote capability.

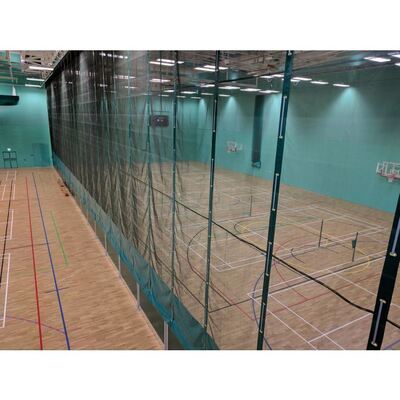

Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 2
Performance Specifications
Typical stacking dimension is approximately 50 cm. The curtain raises or lowers at a rate of approximately 7.5 meters per minute for efficient operation.

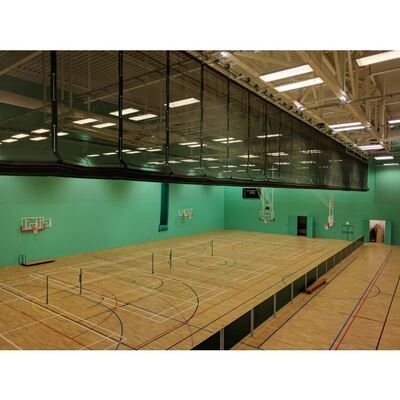

Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 3
Available Configurations

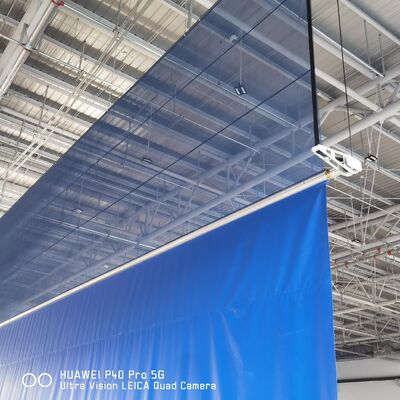

Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 4
  • Solid and Mesh: Combination design with padded bottom tube
  • All Solid: Complete solid construction with padded bottom tube
  • All Mesh: Full mesh design with padded bottom tube
Available in wide variety of vinyl and mesh colors to match facility aesthetics.
Design Features
Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 5 Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 6
Horizontal seams ensure smooth rolling action and consistent performance throughout the system's operation.
Certifications
Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 7 Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 8 Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 9
Packaging & Shipping
Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 10 Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 11 Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 12 Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 13 Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 14 Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 15
Company Profile
Flyon has specialized in EPDM and SBR granules production for over ten years, bringing extensive manufacturing expertise to our sports facility products.
Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 16 Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 17 Automatic Divider Curtain with Overheating Protection and 7.5m per Minute Speed for Sports Halls with 2 Years Warranty 18
Frequently Asked Questions
What is your delivery time?
We offer flexible delivery schedules. In-stock items ship within 5 working days, while mass production orders require 25-35 working days.
Can you provide warranty?
Yes! We provide 5 years quality warranty and 10 years backup support for all our products.
Can I get your samples?
Yes! Flyon Sports offers free samples for our customers, with approximately 3 days preparation time.
Do you provide OEM service?
Yes! We provide comprehensive OEM and ODM services to meet your specific requirements.
